Quick Start

Follow these steps to quickly set up and run your first dbt configuration.

Overview

This guide walks through how to extend the existing dbt project integrated with Dagster.
All raw data from Sling and dltHub is already available in the raw database.
You’ll add new staging, intermediate, and mart models that transform this data for analytics.

---

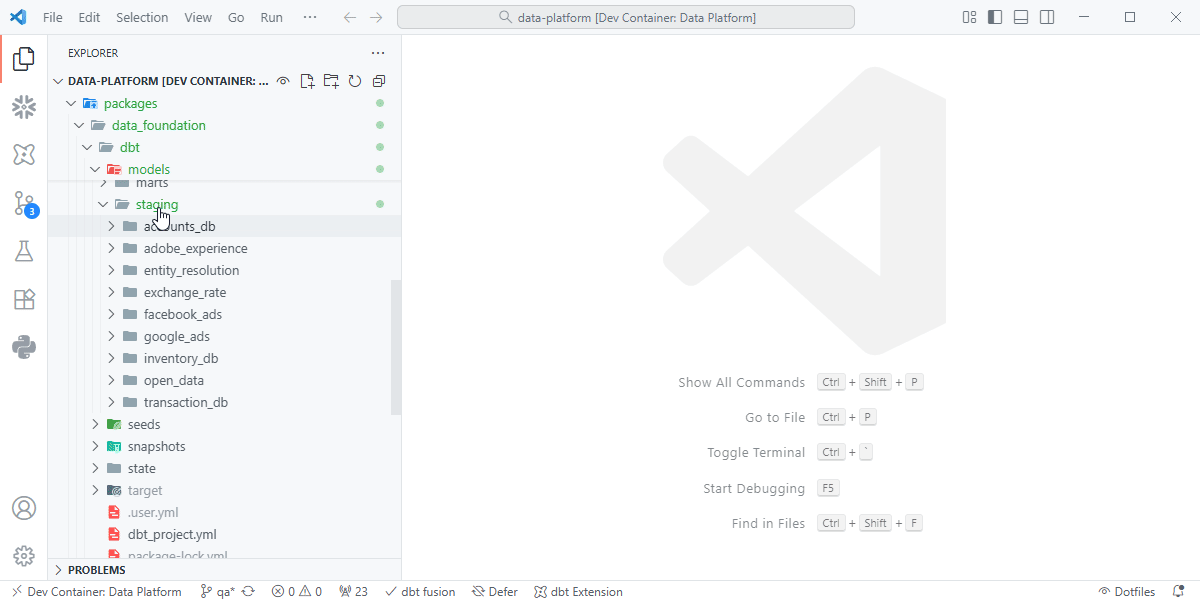

1. Define the Source

Each source system should have a _sources.yml file inside its staging folder.
This declares the raw tables ingested by Sling and dltHub so dbt can reference them with the source() function.

Defining Sources

models/staging/accounts_db/_sources.yml

version: 2

sources:
- name: my_database
  database: "{{ '_'~target.name~'_' if target.name != 'prod'-}} raw"
  schema: "my_database {{- '__'~target.schema if target.name != 'prod'}}"
  tables:
  - name: my_table
    description: "Data extracted from the source system"

Best Practice

Each source system should have its own _sources.yml file.
For example:

staging/
├── my_database/_sources.yml
├── facebook_ads/_sources.yml
├── transaction_db/_sources.yml

---

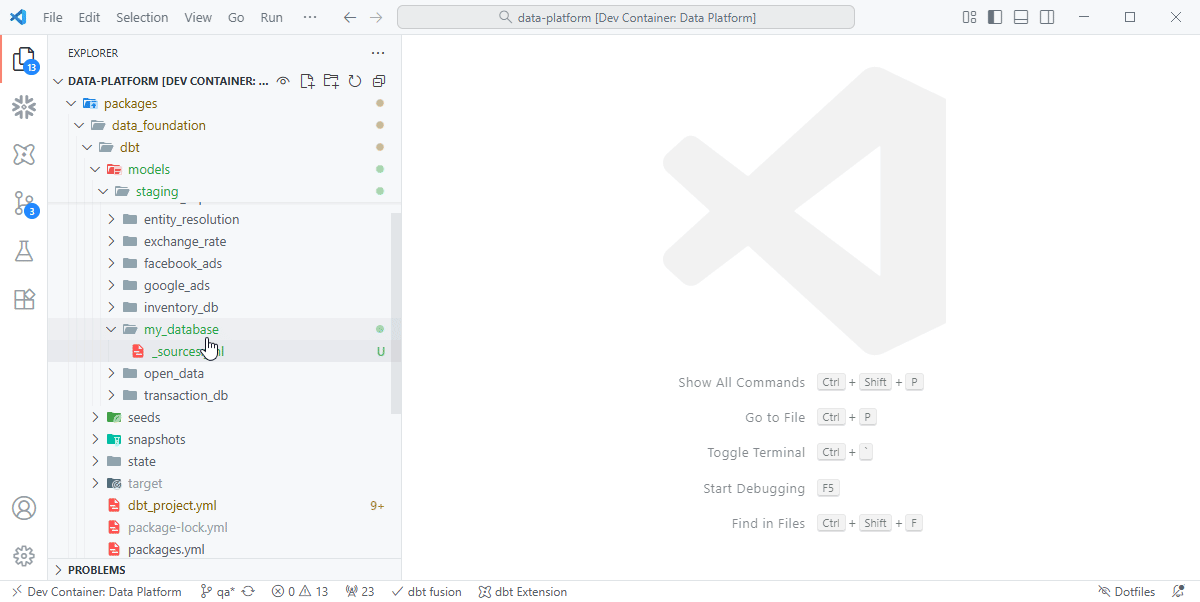

2. Create a Staging Model

Staging models standardize and clean source data from the raw schema.
Each staging folder corresponds to a source system (e.g., accounts_db, facebook_ads, transaction_db).

Navigate to:

models/staging/<source_system>/

Create a new SQL file named with the convention:
stg_<source_system>__<table_name>.sql

Creating Staging Models

models/staging/my_database/stg_my_database__my_table.sql

{{
config(
    materialized = "view",
    )
-}}

with my_table as (
    select * from {{ source("my_database", "my_table") }}
),

renamed as (
    select
        id::int               account_id,
        name::varchar(50)     account_name,
        created_at::timestamp created_at
    from my_table
)

select * from renamed

Best Practice

• Wrap sources in their own one line cte
• Use all lowercase for readbility
• Use snake_case for column names.
• Explicitly cast data types.
• Prefix staging models with stg_ and separate schema and table with double underscores (__).

---

3. Add dbt and Dagster Jinja Configuration Block

models/staging/my_database/stg_my_database__my_table.sql

{{-
    config(
        schema = "my_database",
        alias = "my_table",
        materialized = "incremental",
        unique_key = "account_id",
        incremental_strategy="delete+insert",
        meta = {
            "dagster": {
                "automation_condition": "eager",
                "freshness_check": {"lower_bound_delta_seconds": 129600}
            }
        },
        post_hook = ["{{
            apply_privacy_rules(
                apply_mask=True,
                delete_interval="10 years',
                anonymize_interval="5 years",
                reference_date_column="updated_at",
                pii_columns=[
                    "account_name",
                ]
            )
        }}"]
    )
-}}
- ...

Add the jinja conflig block to the top of the model to define how and when the table is materialized.

---

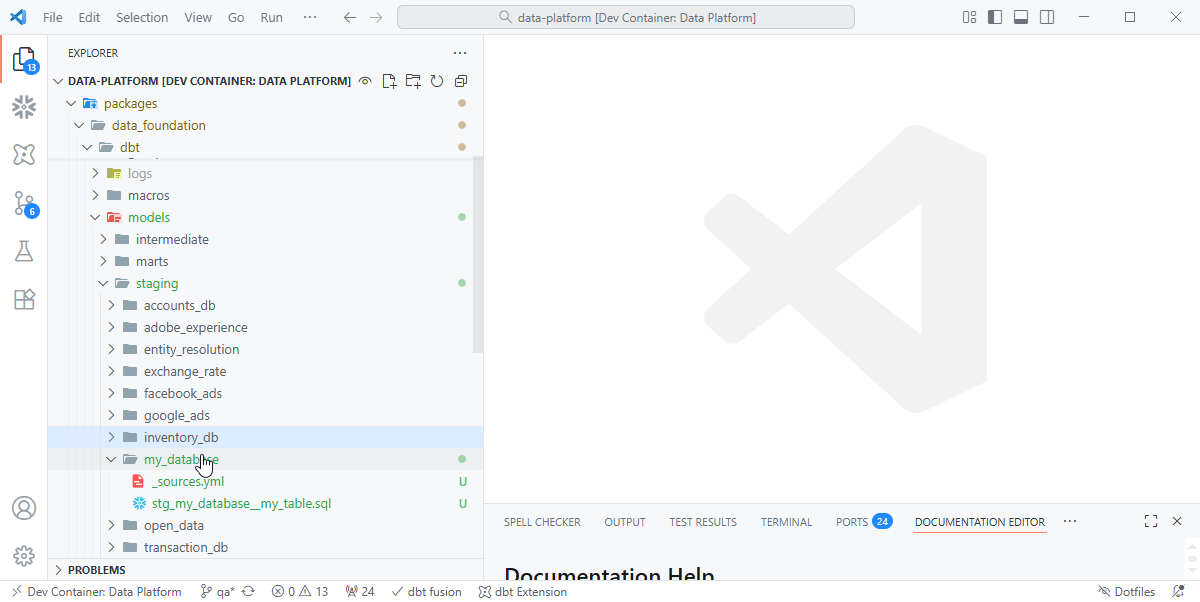

4. Document and Test Staging Models

Add a companion .yml file for each staging model to define metadata and tests.

Model Documentation

models/staging/accounts_db/stg_accounts_db__accounts.yml

version: 2

models:
- name: stg_my_database__my_table
    description: "Standardized data cleaned from raw source"
    columns:
    - name: account_id
        description: "Unique identifier for the account"
        tests:
        - not_null
        - unique
    - name: account_name
        description: "Account display name"
    - name: created_at
        description: "Timestamp when the account was created"

Common Tests:

Test	Description
unique	Ensures the column contains distinct values.
not_null	Ensures the column is never null.
relationships	Validates joins between staging models.

---

5. Create Intermediate Models

Intermediate models combine or enrich staging data before final marts.
They typically live under models/intermediate/ and are grouped by business domain (e.g., marketing, finance, sales).

models/intermediate/marketing/int_marketing__campaign_performance.sql

with campaigns as (
    select * from {{ ref('stg_facebook_ads__campaigns') }}
),
performance as (
    select * from {{ ref('stg_facebook_ads__performance') }}
)

select
    c.campaign_id,
    c.campaign_name,
    p.impressions,
    p.clicks,
    p.spend
from campaigns c
join performance p on c.campaign_id = p.campaign_id

Tip

Use the prefix int_ to clearly identify intermediate models.
They are optional but useful for keeping marts clean and modular.

---

6. Create Mart Models

Mart models are the final layer — curated datasets for analytics, reporting, or dashboards.
They live in models/marts/ and are organized by domain (e.g., marketing, finance, operations).

models/marts/marketing/fct_marketing__fct_attributions.sql

with campaign_data as (
    select * from {{ ref('int_marketing__campaign_performance') }}
)

select
    campaign_id,
    sum(spend) as total_spend,
    sum(clicks) as total_clicks,
    sum(impressions) as total_impressions
from campaign_data
group by 1

Naming Conventions:

Prefix	Zone	Purpose
src_	Raw (Bronze)	Raw data
stg_	Staging (Silver)	Raw → Cleaned data
int_	Staging (Silver)	Intermediate joins and transformations
dim_	Mart (Gold)	Dimension tables
fct_	Mart (Gold)	Fact tables or aggregated datasets
flt_	Mart (Gold)	Flat tables for reporting and ml modeling

---

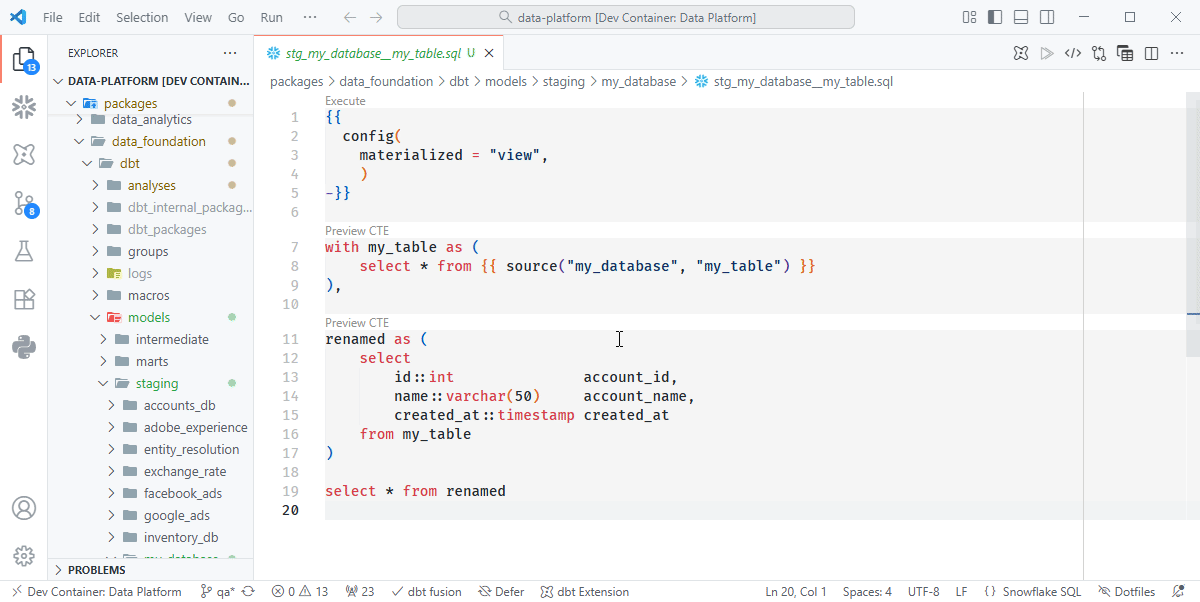

7. Build and Test

After adding your models they can be materialized and tested in your development envrionment by running:

dbt build -s stg_my_database__my_table+

Or by using the dbt extension:

Dagster Integration

This command runs models, executes tests, and builds dependencies automatically.

---
